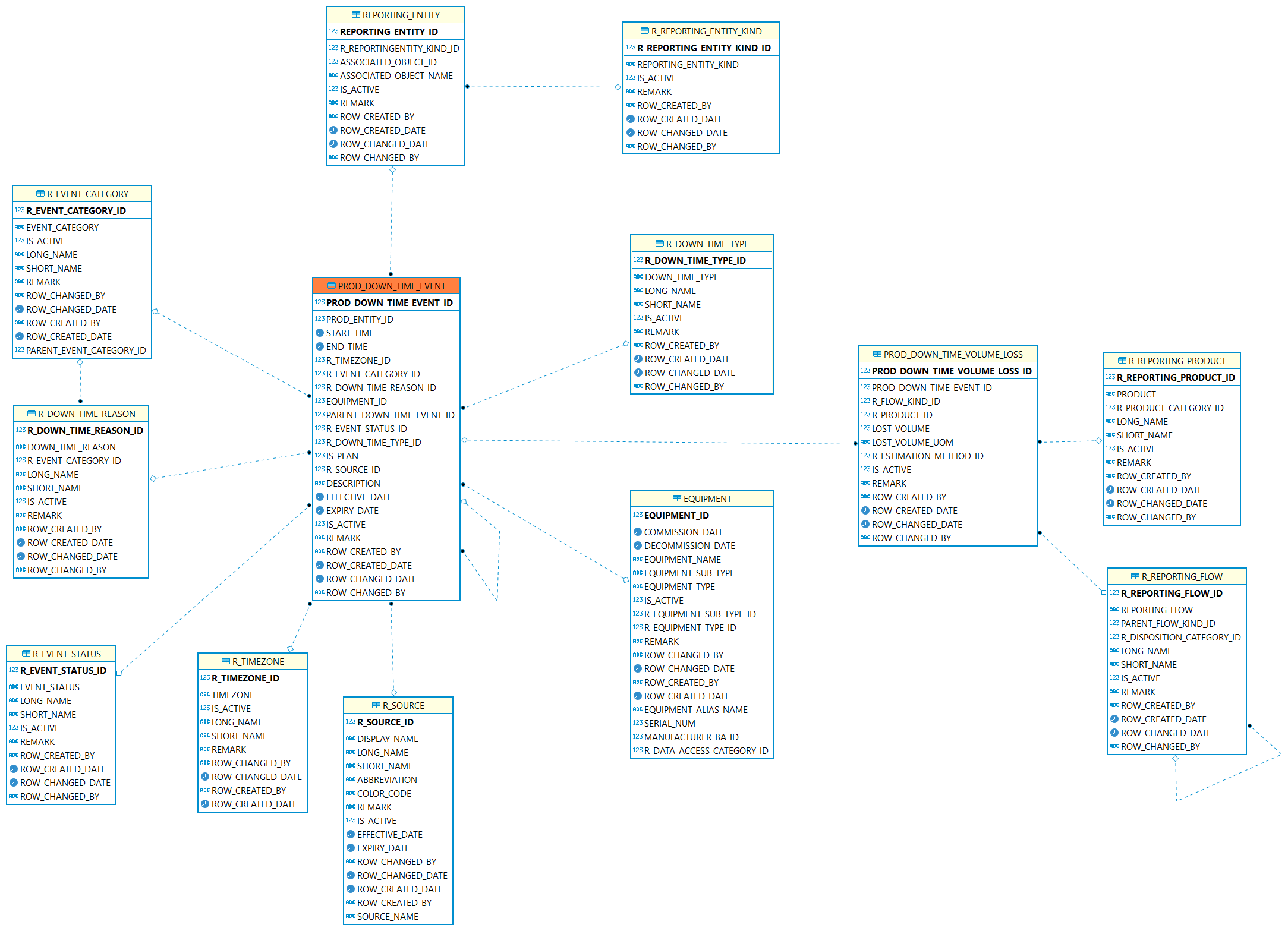

Down Time Data Model
Down Time Event Tables Description
| Table | Description |
|---|---|
Use this table to track the events at different levels of the operations (well, facility). A downtime event is an event that spans a discrete period that negatively affects the production or processing of hydrocarbon products (e.g., produced oil, processed diesel, etc.) The event information includes a description of the event. |
|
An associated record recording deferred volumes due to the event. |
|
Identifies the ``Why'' condition of the downtime event, i.e., why did it occur? These are the basic reasons for or causes of the event. |
|
Indicates the general type of the event would normally be used and causes down time, such as stimulation, repair, failure etc. `What' caused the down time. |
|
Specifies the event status, such as is |
|
Specifies the estimation methods, such as ``default value, forecast, well test'', etc. |
|
Specifies the loss caused by this event, or the type of the down time event is Planned, Unplanned or External. |
