Well Status Data Model

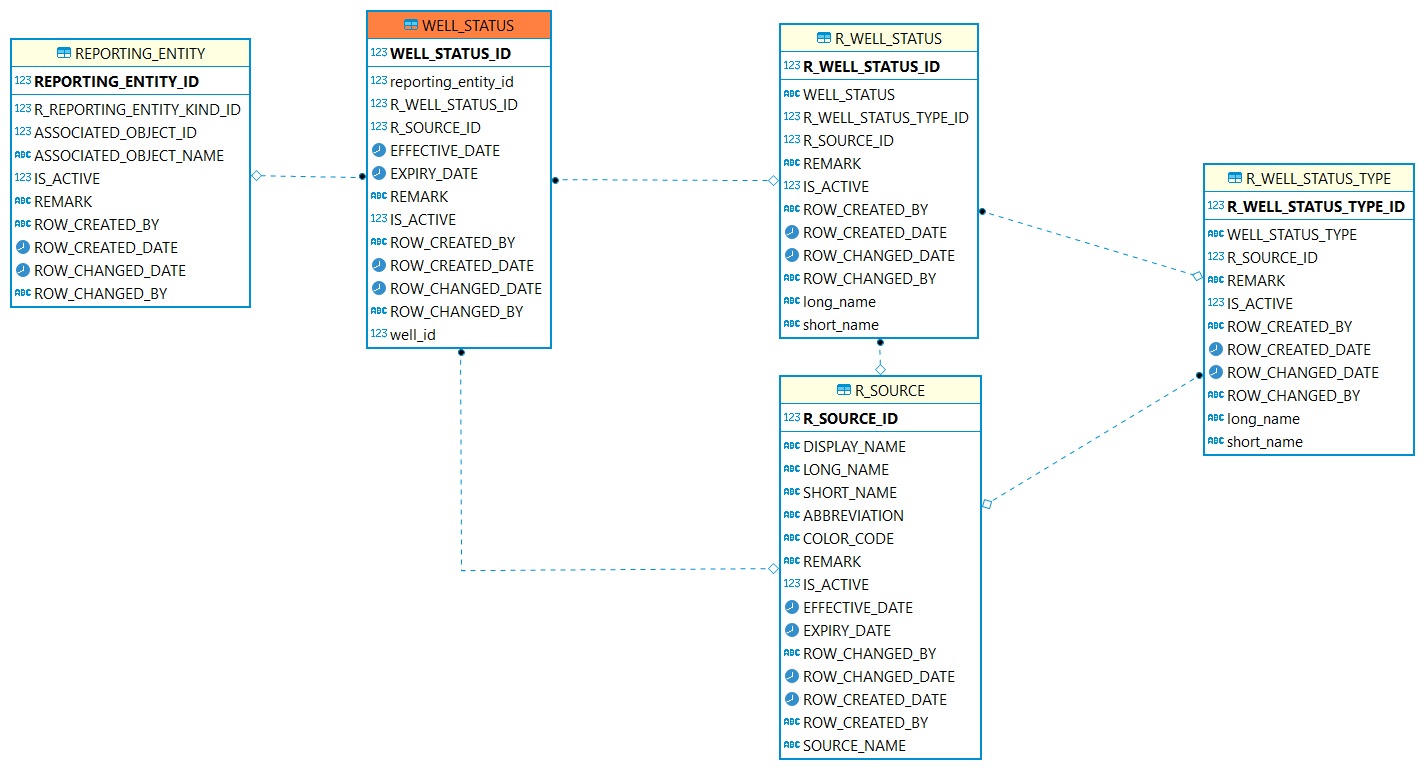

Well Status ERD

Well Status Tables Description

Table	Description
WELL_STATUS	The Well Status table contains an historical account of the operating status of the well. The information may include the dates when the well was completed, produced oil/gas, injected, or was plugged or abandoned.
REPRORTING_ENTITY	Used to define the status of the well,wellbore or well completion.
R_WELL_STATUS_TYPE	The type of status reported for the well. These should include the facet values from Well Status http://www.ppdm.org/standards/wellstatus. Each facet type is one row in this table. As needed, statuses that are reported from various agencies may also be included.
R_WELL_STATUS	This reference table defines the status of the well.

Table

Description

The Well Status table contains an historical account of the operating status of the well. The information may include the dates when the well was completed, produced oil/gas, injected, or was plugged or abandoned.

REPRORTING_ENTITY

Used to define the status of the well,wellbore or well completion.

R_WELL_STATUS_TYPE

The type of status reported for the well. These should include the facet values from Well Status http://www.ppdm.org/standards/wellstatus. Each facet type is one row in this table. As needed, statuses that are reported from various agencies may also be included.

R_WELL_STATUS

This reference table defines the status of the well.
